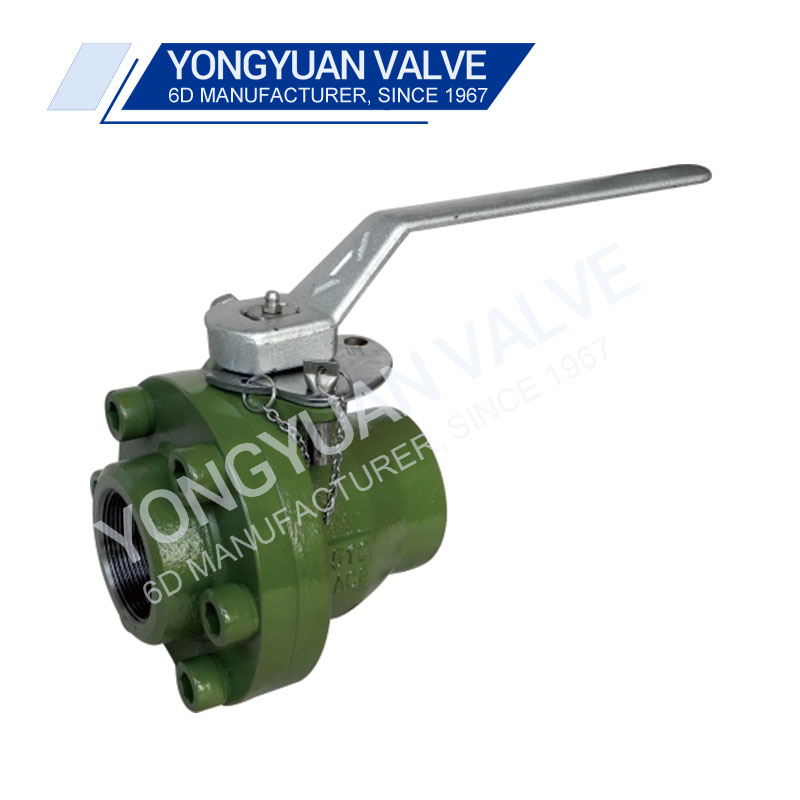

Structural Features and Advantages of Threaded Ball Valve

Threaded ball valves are essential components in industrial and commercial fluid control systems, offering reliability and efficiency. Their design ensures optimal performance in a wide range of applications, from water distribution to chemical processing. Below, we explore the structural features, advantages, and detailed specifications of threaded ball valves.

Structural Features

The threaded ball valve is characterized by its simple yet robust construction. Key components include:

• Body Material: Typically constructed from brass, stainless steel, or PVC, ensuring durability and resistance to corrosion.

• Ball Mechanism: A rotating ball with a bore in the center, which controls flow. When the handle is turned 90 degrees, the bore aligns with the flow path (open) or blocks it (closed).

• Threaded Ends: These valves feature threaded (screwed) connections, allowing for easy installation and removal without specialized tools. Common thread standards include NPT (National Pipe Thread) and BSP (British Standard Pipe).

• Seats and Seals: Made from materials like PTFE (Teflon) or reinforced thermoplastics, providing a tight seal and low friction operation.

• Stem Design: The stem connects the handle to the ball, ensuring smooth rotation. It is often sealed with O-rings to prevent leakage.

Advantages of Threaded Ball Valve

The threaded ball valve offers several benefits:

1. Leak-proof Performance: The combination of precision machining and high-quality seals minimizes the risk of leaks, even under high pressure.

2. Easy Installation: Threaded connections simplify assembly and disassembly, reducing downtime during maintenance.

3. Durability: Robust materials and construction make these valves suitable for harsh environments, including exposure to chemicals and extreme temperatures.

4. Low Maintenance: With fewer moving parts and resistant materials, threaded ball valves require minimal upkeep.

5. Versatility: They can handle various media, including water, oil, gas, and aggressive chemicals.

Product Parameters

Below is a detailed breakdown of the technical specifications for a standard threaded ball valve:

Key Applications

• Water and Wastewater Systems: Used for isolation and control in pipelines.

• Chemical Processing: Resistant to corrosive fluids.

• HVAC Systems: Regulates coolant and refrigerant flow.

• Oil and Gas Industry: Suitable for low-pressure hydrocarbon applications.

In summary, the threaded ball valve is a versatile and reliable solution for fluid control. Its threaded design, combined with high-quality materials, ensures long service life and minimal maintenance. Whether for industrial or commercial use, this valve delivers exceptional performance.
