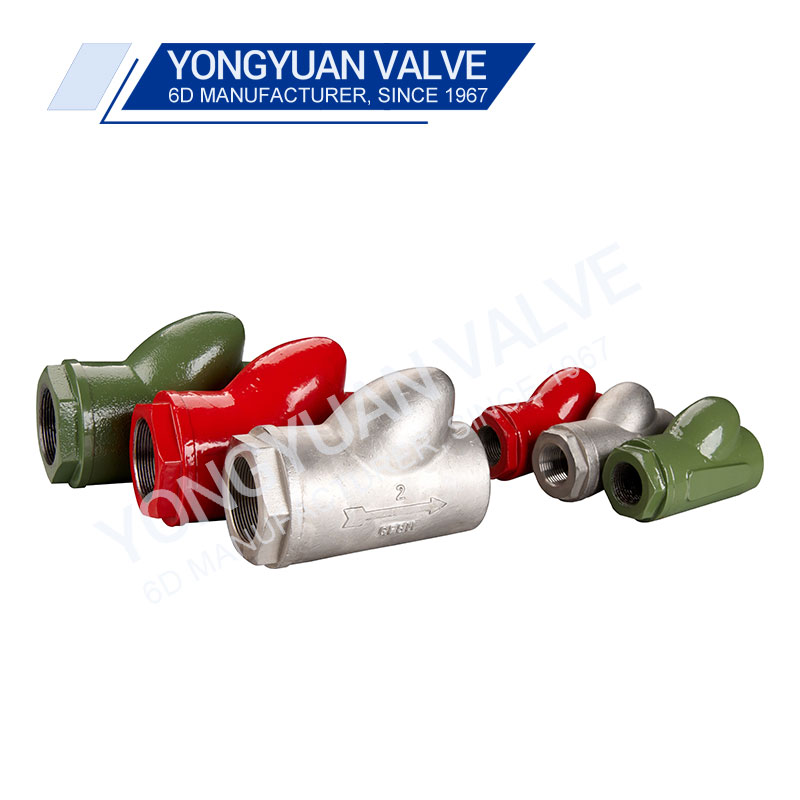

The key role and selection points of threaded check valves in industrial fluid systems

In industrial fields such as petroleum, chemical industry, and electric power, the safety and stability of fluid transportation systems directly affect production efficiency and equipment life. As an indispensable "one-way checkpoint" in the pipeline system, the threaded check valve has become the preferred control element for small and medium-sized pipelines due to its compact structure, reliable sealing and convenient installation characteristics. This article will discuss its technical advantages and industry experience in selection in combination with actual application scenarios.

Engineering value of threaded connection design

Compared with traditional flanged check valves, threaded connections (NPT, BSPT and other standards) significantly reduce the installation space requirements, and are particularly suitable for pipeline systems with dense corridors or embedded in equipment. A technical transformation case of a refinery shows that in steam recovery pipelines below DN80, the use of threaded check valves shortens the installation time by 40%, and avoids the risk of leakage caused by uneven bolt stress common in flange connections. However, it should be noted that threaded valve bodies may suffer from thread wear in frequent disassembly scenarios. It is recommended to use live joints in pipe sections with high maintenance frequency.

Selection of check mechanism type

1. Swing type: The valve disc is a hinged structure, which can be opened under low pressure difference and is suitable for media with high viscosity (such as heavy oil). When a chemical plant used a swing-type threaded check valve in a residual oil conveying line, it was found that when the medium contained more than 3% solid particles, a valve disc limiter was required to prevent the pendulum from excessively impacting the sealing surface.

2. Spring-assisted type: Rapid closing is achieved by pre-tightening the spring, which can effectively eliminate the water hammer phenomenon. In the transformation of the water supply system of a power plant, after replacing the ordinary lift check valve with a spring-assisted threaded valve, the peak pressure fluctuation when the pump was shut down was reduced by 62%.

Industry lessons on material adaptability

● Low temperature conditions: A LNG project once used a 304 valve body that cracked under a -196℃ environment. Later, it was replaced with a deep-cold treated 316L material with a PTFE seal ring, and the operating cycle was extended to more than 5 years.

● Corrosive environment: In the chlor-alkali industry, the combination of Hastelloy C276 valve body and hard chrome-plated valve stem has a lifespan three times longer than that of ordinary duplex steel valves. Although the initial cost increases by 35%, the average annual maintenance cost decreases by 58%.

Practical wisdom of installation and maintenance

1. Flow direction identification: A food factory once caused fermentation tank backflow contamination due to workers installing valves in reverse. Later, the "two-color flow direction arrow + installation acceptance photo" system was implemented to completely eliminate such problems.

2. Online monitoring: In high-demand fields such as nuclear power, intelligent threaded check valves with sensor interfaces can be selected to monitor the opening and closing status of the valve disc in real time, and data can be connected to the DCS system to achieve predictive maintenance.

The selection of threaded check valves is not a simple parameter comparison, but requires comprehensive consideration of medium characteristics, system dynamics behavior and full life cycle costs. It is recommended to establish a "valve failure mode library" to collect typical failure cases such as sealing surface erosion and spring fatigue, and form a selection decision tree exclusive to the enterprise. In the context of intelligent transformation, valves with integrated status monitoring functions will become the standard configuration of the next generation of industrial pipelines.
